Product overview：
     New intelligent touch upgrade products
     It has the alarm function at the end of the experiment, can set the alarm time, can set the ventilation time of nitrogen and oxygen, and the instrument automatically switches the gas without waiting for the switch manually
     Application: suitable for the determination of carbon black content in polyethylene, polypropylene and polybutene plastics

Technical features：
1. 7-inch wide touch screen control, current temperature, set temperature, decomposition state, pyrolysis state, constant temperature state, empty tube calcination, operation time, oxygen state, nitrogen state and other information integrated display, very simple operation.
2. The integrated design of heating furnace body and control system is convenient for user's instrument management.
3. The temperature program of pyrolysis, decomposition and empty tube calcination is automatically stored, and the user only needs one button to start the operation, saving the tedious repeated temperature setting. Fully automatic operation control in the real sense.
4. Nitrogen and oxygen two-way gas instrument automatic switch, equipped with high-precision floating ball gas flowmeter.
5. Nano blanket is a new type of heat preservation material, which can achieve excellent heat preservation and constant temperature effect and high temperature uniformity in furnace.
6. Compliance with standardsGB/T 2951.8，GB/T 13021，JTG E50 T1165，IEC 60811-4-1，ISO 6964。

technical parameter：
1.Temperature range: room temperature~1000℃
2. Combustion tube size: Ф30mm*450mm
3. Heating element: resistance wire
4. Display mode: 7-inch wide touch screen
5. Temperature control mode: PID programmable control, automatic memory temperature setting section
6. Working power supply: AC220V/50HZ/60HZ
7. Rated power:1.5KW
8. Host size: 305mm long, 475mm wide and 475mm high

Configuration list：
1. One main machine of carbon black content tester
2. 1 power cord
3. 1 pair of big tweezers
4. 10 Burning Boats
5. 1 medicine spoon
6. 1 small tweezer
7. Nitrogen pipe 5m
8. Oxygen pipe 5m
9. Exhaust pipe 5m
10. 1 manual
11. 1 CD
12. 1 set of operation video
13. 1 Certificate
14. 1 warranty card
15. 2 quick connectors
16. 2 pressure reducing valve joints
17. 5 fuses
18. 1 pair of high temperature gloves
19. 4 silicone plugs
20. 2 combustion pipes

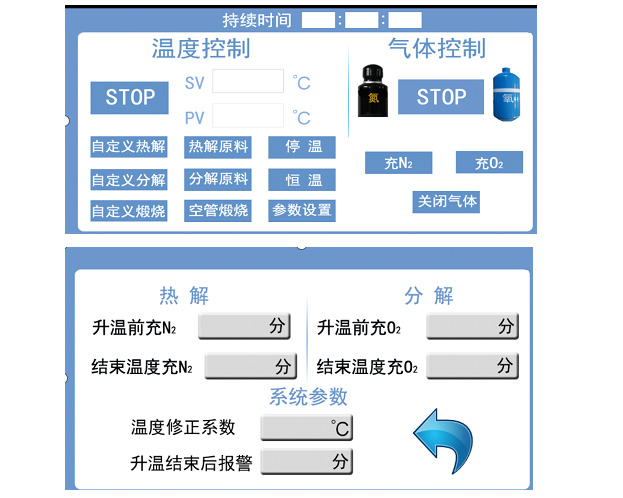

touch screen：
