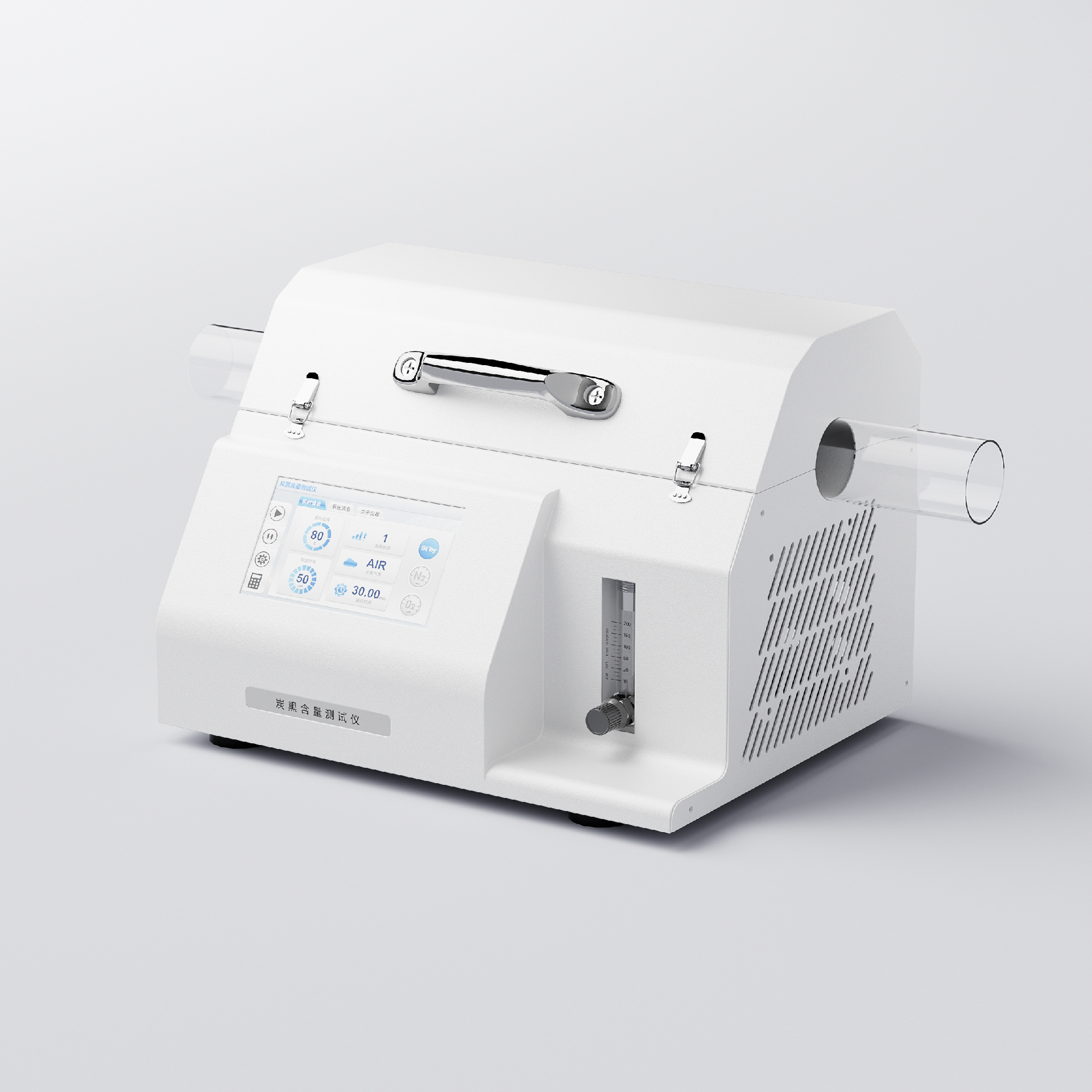

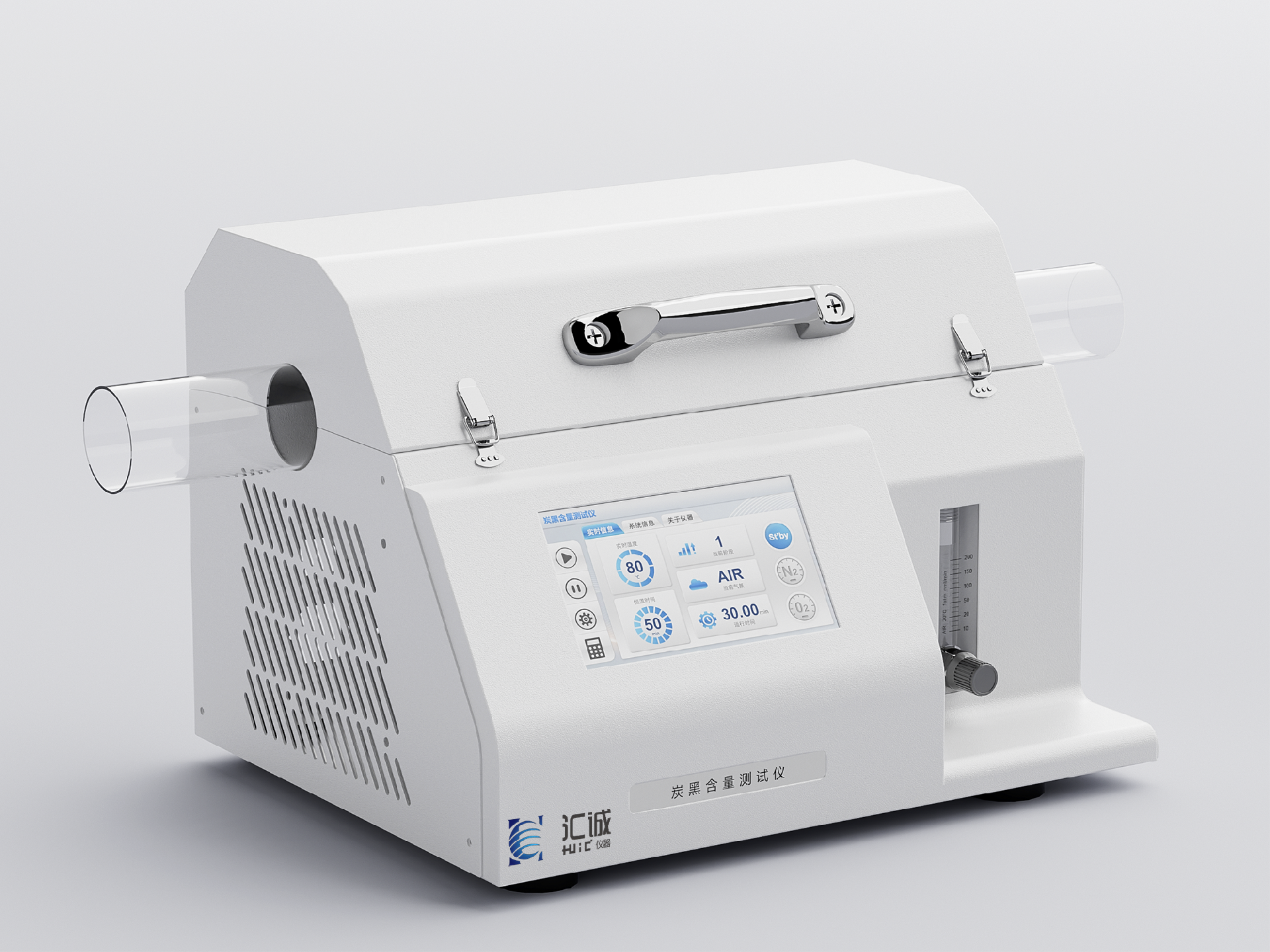

Carbon Black Content Tester Overview:
Carbon black content tester is suitable for the determination of carbon black content in polyethylene, polypropylene and polybutylene plastics. The test of carbon black is obtained by analyzing the weight of the specimen after high temperature decomposition under nitrogen protection. The instrument has the advantages of easy to use, simple operation, accurate measurement, high precision and high degree of automation.

Usage:
Carbon black content is an important technical index in product performance, the amount of content has a certain effect on the hardness, elasticity, wear resistance and insulation of the material.

Carbon black content tester technical characteristics:
1. Adopting open lid furnace structure, convenient for placing samples and better heat dissipation.
2. The furnace chamber adopts ultra-long heating unit, which can test 4 groups of samples at the same time, greatly improving the testing efficiency.
3, the software comes with a calculation function, can be a key to automatically calculate the carbon black content, ash content, very convenient and quick.
4. Adopting PID precise temperature control, high temperature control precision, large temperature range and high temperature uniformity in the furnace chamber.
5. 7-inch LCD touch screen display, can be one-key operation start, set the constant temperature time, high precision of constant temperature;
6、Intelligent programmable control, can set up multi-component segment heating program.

Carbon black content tester technical parameters:

1、Temperature range: room temperature~1000℃.
2、Display mode: 7-inch wide touch screen
3、Size of quartz tube: Ф45mm*600mm
4、Furnace chamber size: Φ45mm*350mm
5, heating element: high temperature alloy resistance wire
6、Length of heating area:260mm
7、Temperature control mode: can be set up in multiple segments of the heating program, automatic memory temperature setting segments
8、Sensor sensitivity: 0.1℃.
9、Gas control: two ways, the program can be automatically switched
10, the number of test samples: a test of 4 groups of samples
11, cooling mode: open cover type, rapid cooling, reduce the test cooling time
12, data calculation: the software comes with a calculation function, a key calculation; can automatically calculate the carbon black content, ash content
13、Working power supply: AC 220V/50Hz or customized
14、Power:600W
15, external size: 416 * 325 * 289mm
