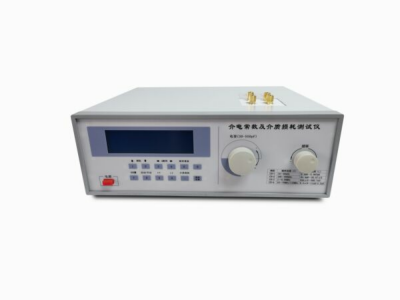

HC5001 Dielectric constant tester

Product classification： Dielectric constant tester

Dielectric loss and dielectric constant are important physical properties of various metal oxides plates ceramics mica glass plastics and other materials. Through the measurement we can further understand the various factors that affect the diel

Order Hotline：+086-025-52702696

Consult

product details

instrument introduction: The instrument is used for scientific research institutions, schools, factories and other units of the new inorganic metal material properties of applied research.

Technical parameters:
1. signal source: DDS digital synthesis 10KHZ-70MHz
2. Sampling accuracy: 11BIT
3. Q measurement range: 1-1000 auto/manual range
4. Q Resolution: 0.1
5. Q Measurement operating error <5%
6. Inductance measurement range: resolution 0.1nH 1nH-8.4H , resolution 0.1nH
7. Inductance Measurement Error <3%
8 tuning capacitance: main capacitance 30-540pF
9. capacitance direct measurement range: 1pF ~ 2.5uF
10. tuning capacitance error: ± 1 pF or <1% 0.1pF
11. resonance point search: automatic scanning
12. Q qualified preset range: 5-1000 sound and light prompts
13 LCD display parameters: F, L, C, Q, Lt, Ct band, etc.
14. Dielectric loss coefficient precision: one ten thousandth
15 dielectric constant precision: one thousandth
16. material testing thickness: 0.1mm-10mm

Unique technology:1. The instrument automatically deducts the residual inductance and test lead inductance. Significantly improve the measurement accuracy.
2. Large capacitance value is directly measured and displayed.
3. Digital micro-measuring device, direct reading value.

Reference standard:
GB/T 1409-2006 Measurement of electrical insulation materials in the industrial frequency, audio, high frequency (including meter wave wavelengths within) under the capacitance rate and dielectric loss factor of the recommended methods;
GB/T 1693-2007 Method for the determination of dielectric constant and dielectric loss angle tangent of vulcanized rubber;
ASTM-D150 Test method for dielectric constant;.
GB9622.9-88/SJT 11043-1996 Test methods for high frequency dielectric loss and dielectric constant of electronic glass.
