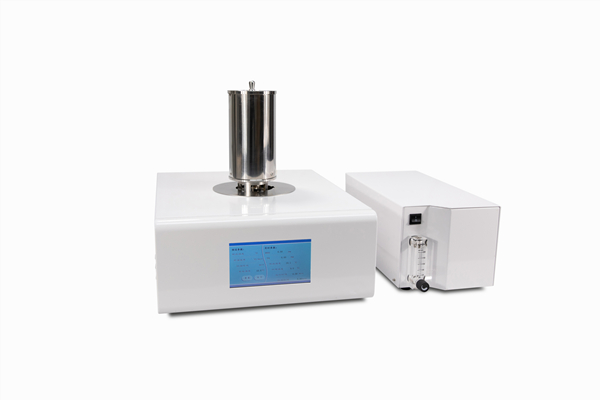

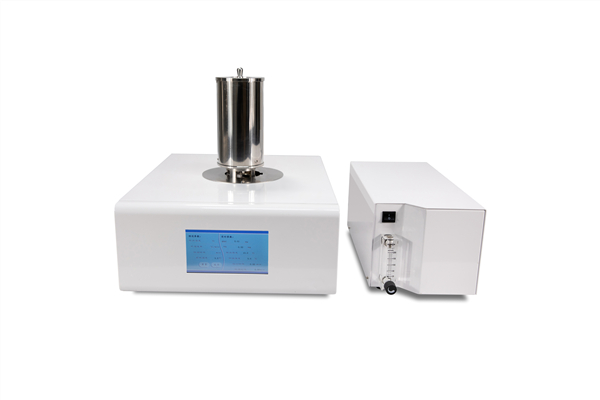

STA-1250 Integrated Synchronized Thermal Analyzer

Product classification: Integrated synchronous thermal

Simultaneous thermal analysis combines TGA with DTA or DSC. The information of TG DTA or DSC can be obtained synchronously by using the same sample in the same measurement.

Order Hotline:+086-025-52702696

product details

Product Introduction: Product Description:
DSC: melting, crystallization, phase change, reaction temperature and reaction heat, heat of combustion, specific heat, etc.
TGA: thermal stability, decomposition, redox, adsorption and desorption, free water and water of crystallization content, composition ratio calculation, etc.

The main features of the instrument:
1. the balance comes with internal calibration function, with better accuracy and repeatability.
2. Adopting imported alloy sensor, which is more corrosion-resistant, oxidation-resistant and with high sensor sensitivity.
3. the heating of the furnace body is wound with precious metal alloy wire, which reduces interference and is more resistant to high temperature.
4. perfect atmosphere control system, automatic switching of software settings, data recorded directly in the database.
5. Adopting Cortex-M3 kernel ARM controller, faster operation and processing speed, more accurate temperature control.
6. Adopting USB bidirectional communication, fully realize intelligent operation.
7. 7-inch 24-bit color full-color LCD touch screen, real-time display of the instrument's state and data.
8. Adopting upper open cover structure, easy to operate. It is difficult to move up the furnace body to put the sample operation, easy to cause damage to the sample rod.
9. Automatic generation of test reports and printing. Software built-in test records, data processing and report format, automatic generation of experimental reports

Technical Parameters:
1. temperature range: room temperature ~ 1250 ° C
2. temperature resolution: 0.01 ℃
3. Temperature fluctuation: ±0.1℃
4. Rising temperature rate: 0.1~100℃/min
5. Temperature Control Mode: Rising Temperature, Constant Temperature
6. Measuring range of balance: 0.01mg~2g
7. Resolution: 0.01mg
8. DSC range: 0~±500mW
9. DSC resolution: 0.01mW
10. Constant temperature time: 0~300min arbitrary setting
11. Display mode: Chinese character large screen liquid crystal display
12. Atmosphere: inert, oxidizing, reducing, static, dynamic
13. atmosphere device: built-in gas flow meter, including two-way gas switching and flow size control
14. software: intelligent software can automatically record the TG curve for data processing, printing experiment report
15. data interface: standard USB interface, dedicated software (software upgrade free of charge from time to time)
16. Power supply: AC220V 50Hz

purchase:STA-1250 Integrated Synchronized Thermal Analyzer
